Capacity
- Capacity (Cooling, Btu/hr)17000
- Capacity (Heating, Btu/hr)20500
- Capacity (Cooling, Min – Max, Btu/hr)5,500 ~ 22,000
- Capacity (Heating, Min – Max, Btu/hr)4,000 ~ 24,500
- Capacity (Cooling, kW)4.98
- Capacity (Heating, kW)6.01
- Capacity (Cooling, Min – Max, kW)1.61 ~ 6.45
- Capacity (Heating, Min – Max, kW)1.17 ~ 7.18
Energy Efficiency
- SEER(W/W, Energy Label)6.10
- SCOP(W/W, Energy Label)3.80
- EER (Cooling, W/W)3.44
- COP (Heating, W/W)3.43
- EER (Cooling, Btu/hW)11.72
- COP (Heating, Btu/hW)11.71
- Energy Efficiency Class for cooling (Grade)A++ / A
Noise Level
- Sound Power Level(Indoor, Cooling, dBA)58
- Sound Power Level(Outdoor, Cooling, dBA)65
- Noise Level (Indoor, High/Low, dBA)41 / 27 dBA
- Noise Level (Outdoor, High/Low, dBA)51
Electrical Data
- Power Source(Φ/V/Hz)1 / 220-240~/ 50
- Power Consumption(Cooling, W)1450
- Power Consumption(Heating, W)1750
- Operating Current(Cooling, A)6.6
- Operating Current(Heating, A)7.9
Physical specification
- Gross Dimension (Indoor, WxHxD, mm*mm*mm)1115*290*375
- Gross Dimension (Outdoor, WxHxD, mm*mm*mm)1023*724*413
- Net Dimension (Indoor, WxHxD, mm*mm*mm)1055*299*215
- Net Dimension (Outdoor, WxHxD, mm*mm*mm)880*638*310
- Gross Weight (Indoor, kg)13.2
- Gross Weight (Outdoor, kg)45.2
- Net Weight (Indoor, kg)11.5
- Net Weight (Outdoor, kg)39.8
- Loading Quantity (20/40/40Hft without Pipe)65 / 138 / 154
Technical Information
- Piping Length (Max, m)30
- Piping Height (Max, m)15
- SVC Valve (Liquid (ODxL))6.35
- SVC Valve (Gas (ODxL))12.7
- Moisture Removal (l/hr)2.0

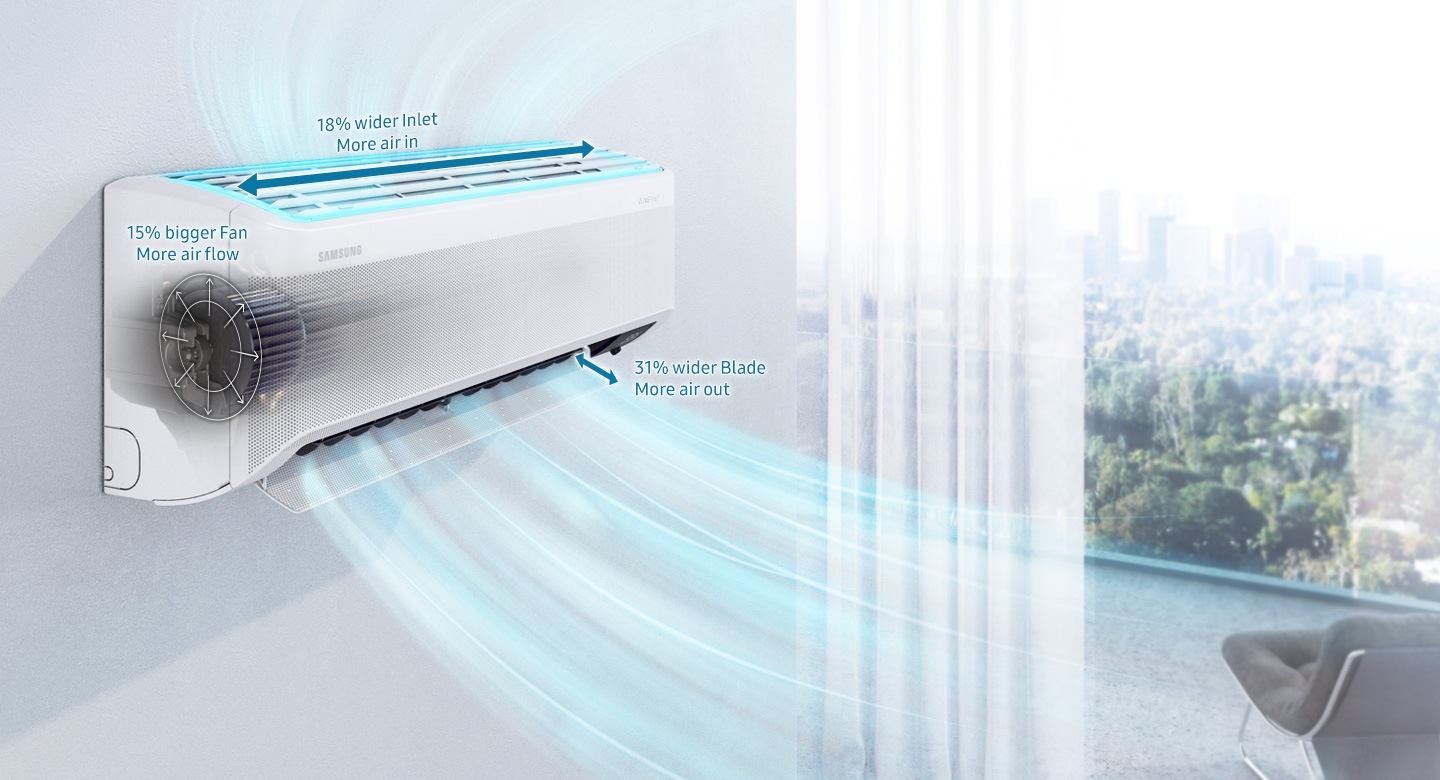

- Air Circulation (Cooling, m3/min)16.6
- Refrigerant (Type)R410A
- Refrigerant (Charging, kg)1.30
- Low Ambient (Cooling, ℃)-10~46
- Low Ambient (Heating, ℃)-15~24

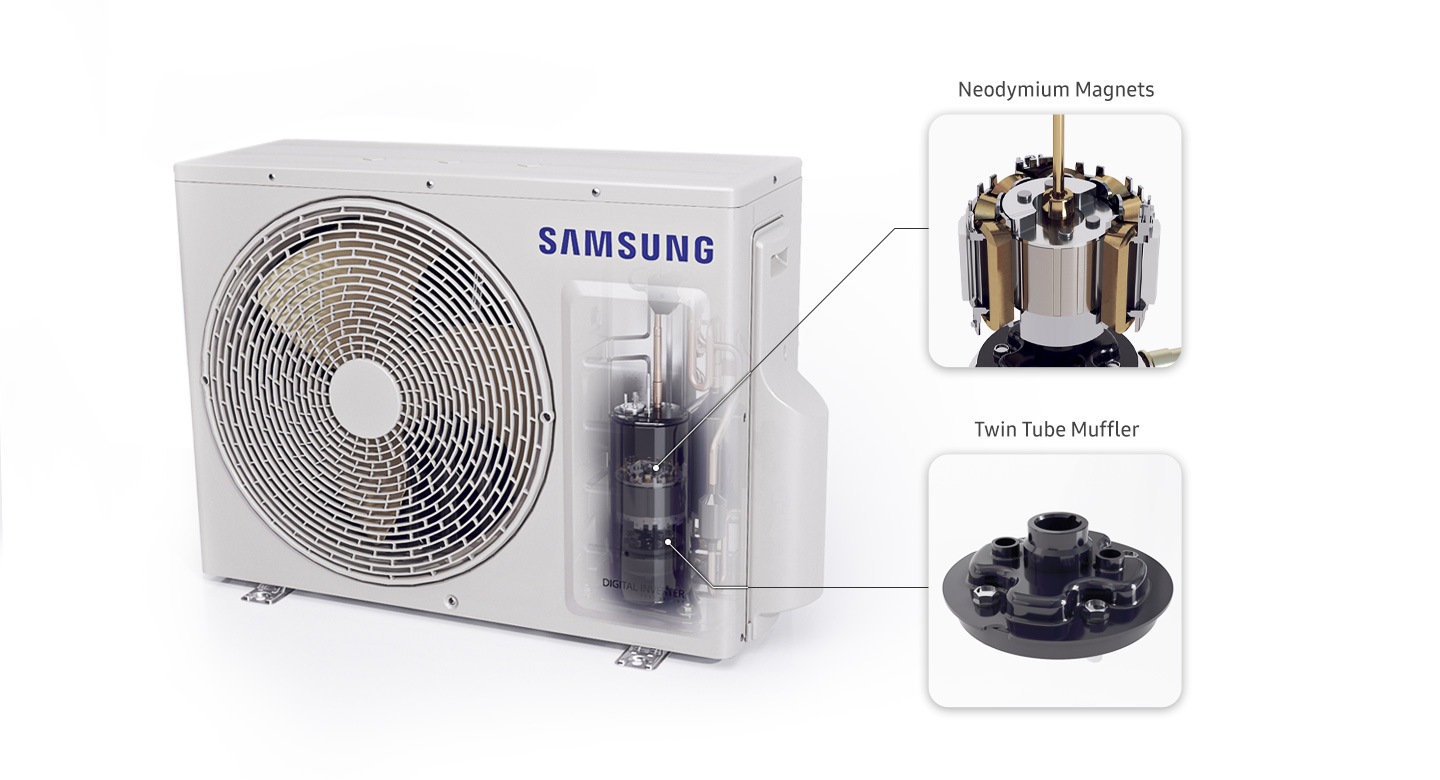

- Outdoor Unit (Compressor Type)BLDC

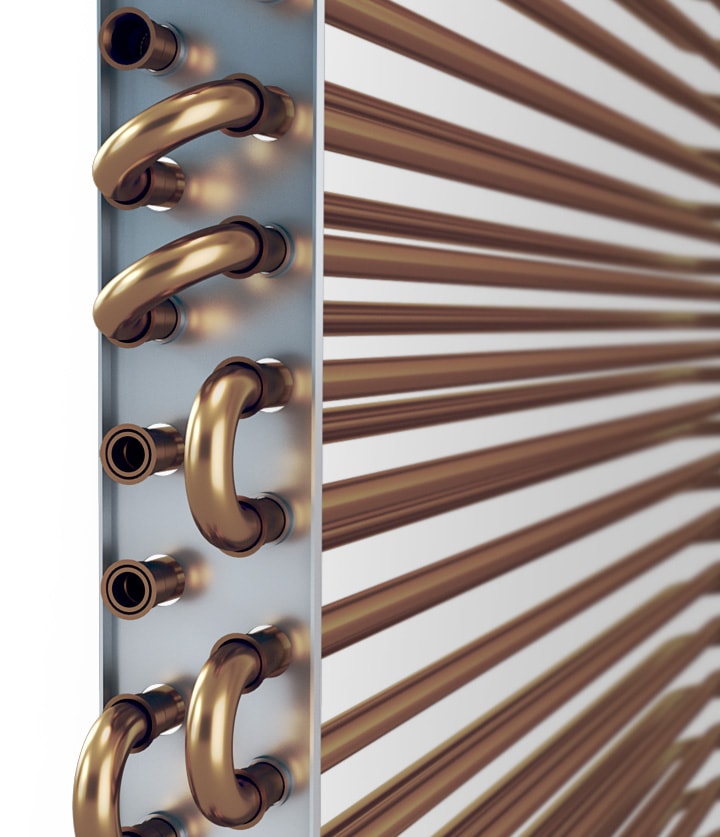

- Outdoor Unit (Anti-Corrosion Fin)Yes
Air Flow

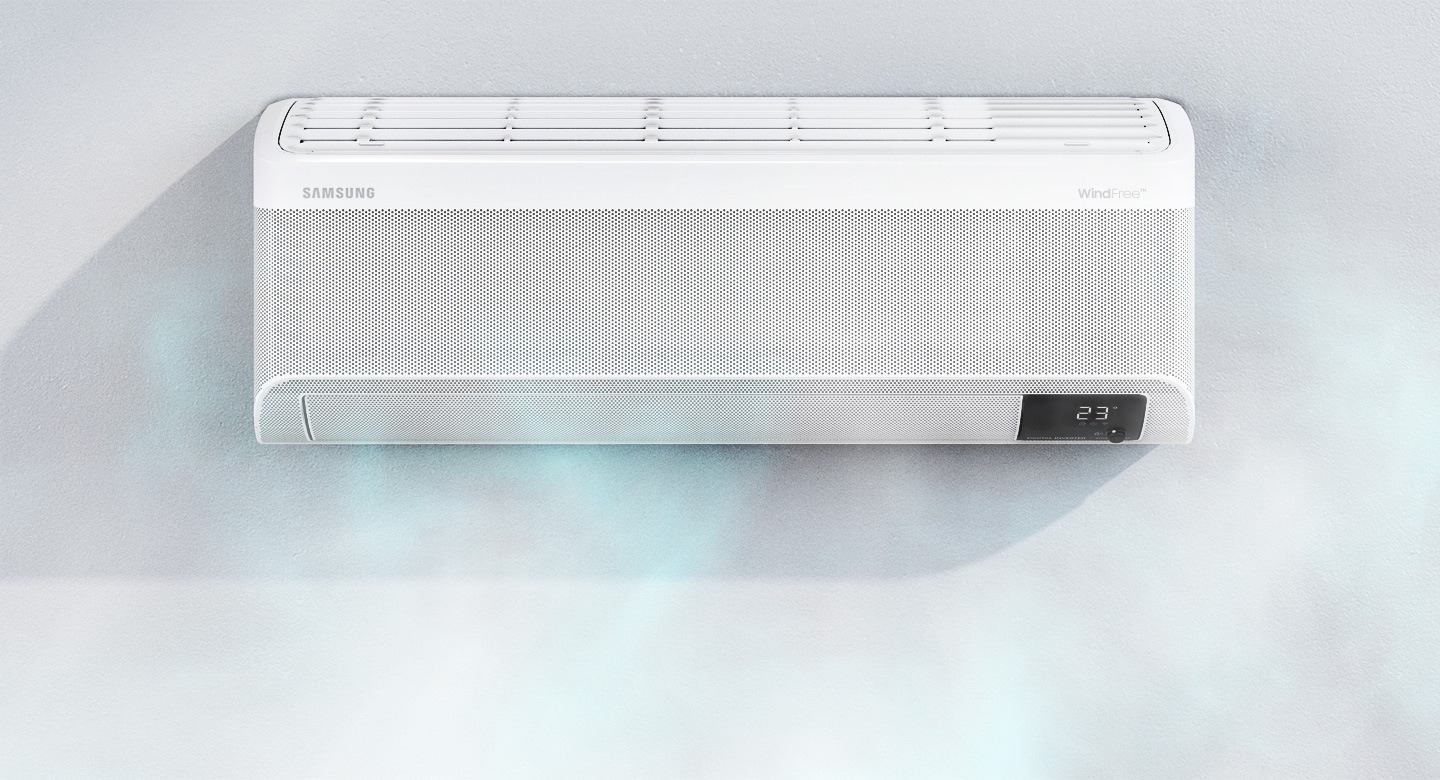

- WindFree CoolingYes
- Air Direction Control (Up/Down)Auto
- Air Direction Control (Left/Right)Auto
- Air Flow Control Step (Cool/Fan)5/4
Air Purification
- PM 1.0 FilterNo

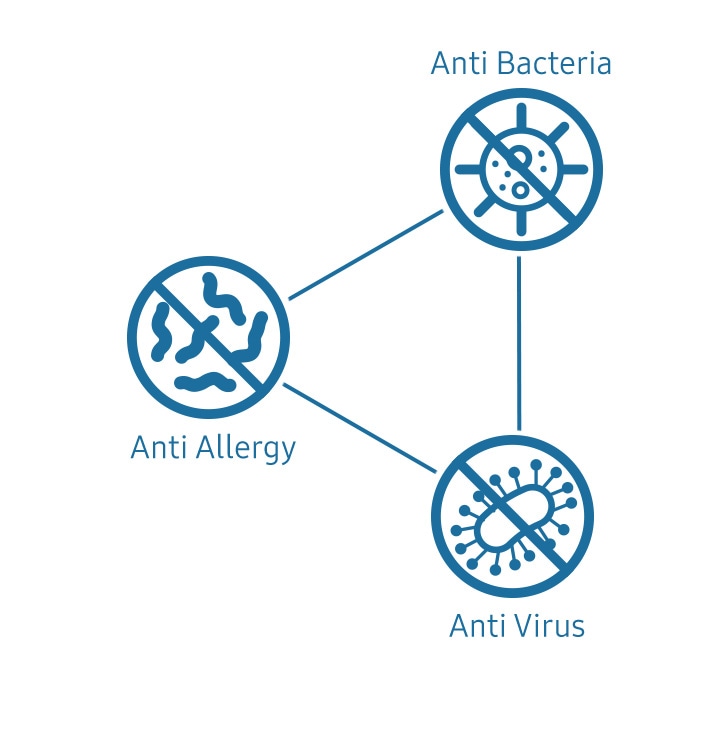

- Tri Care FilterYes
- Easy Filter Plus (Anti-Bacteria)Yes

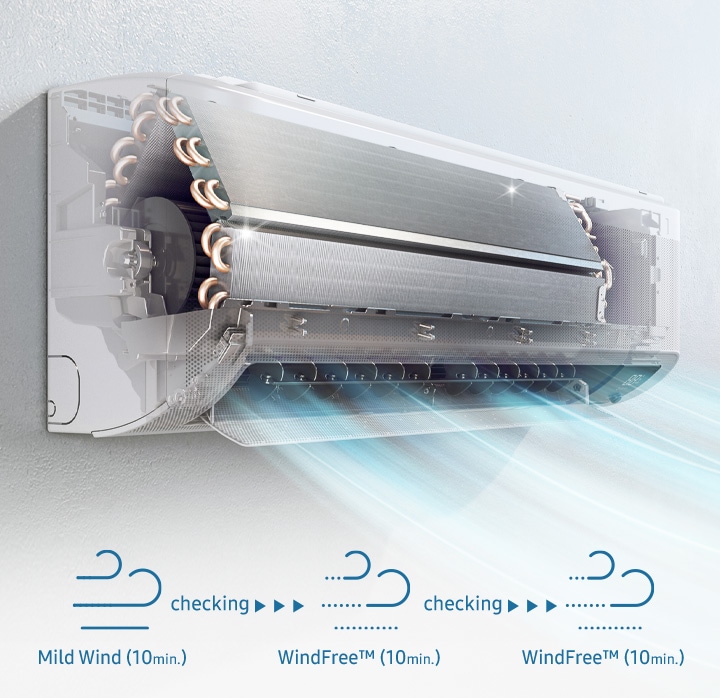

- Auto Clean (Self Cleaning)Yes
Convenience
- SmartThingsYes

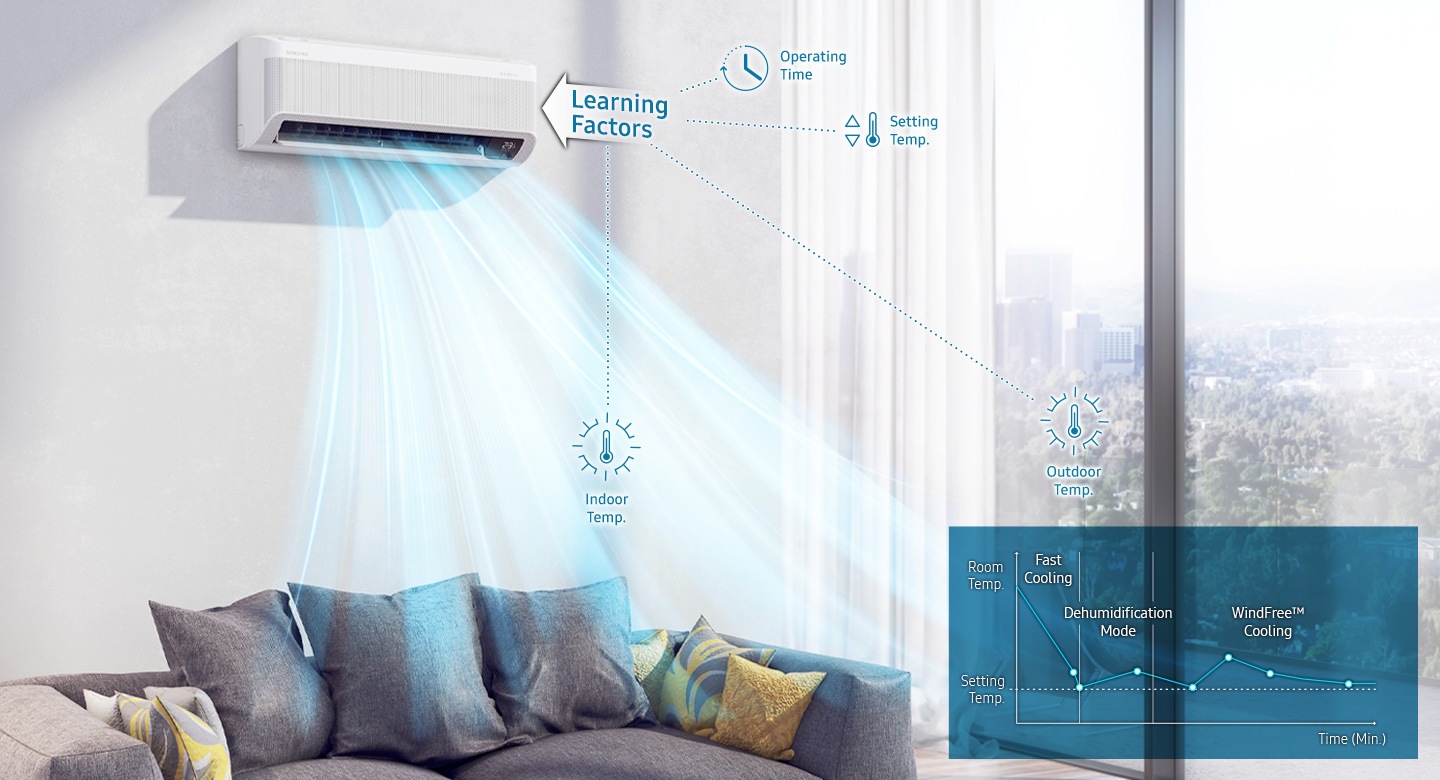

- AI Auto CoolingYes

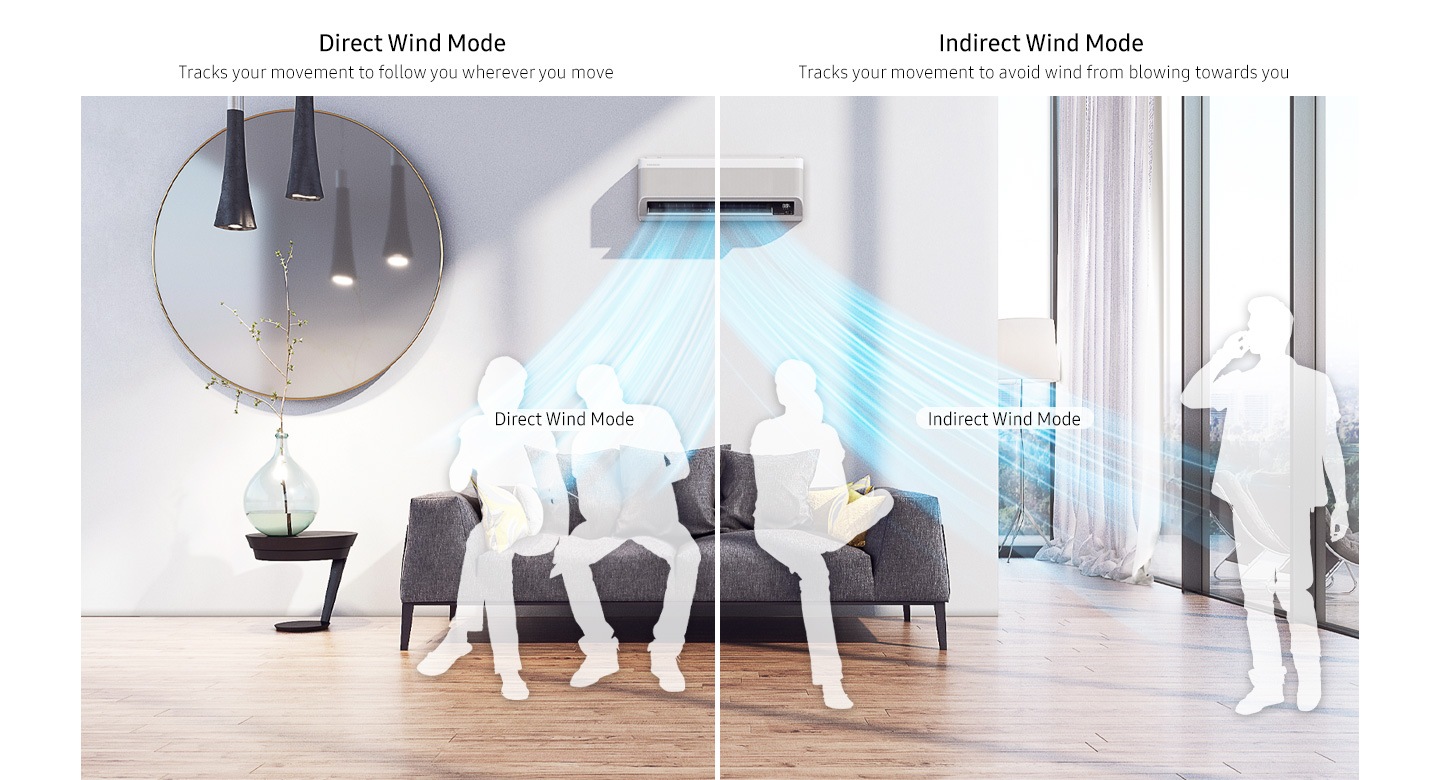

- Motion Detect SensorYes
- Freeze WashNo
- Filter Cleaning IndicatiorYes
- Indoor Temp. DisplayYes
- Display On/OffYes
- Beep On/OffYes
- 24-Hour TimerYes
- Auto ChangeoverYes
- Auto RestartYes
Operating Mode
- Auto ModeYes
- Fast CoolYes

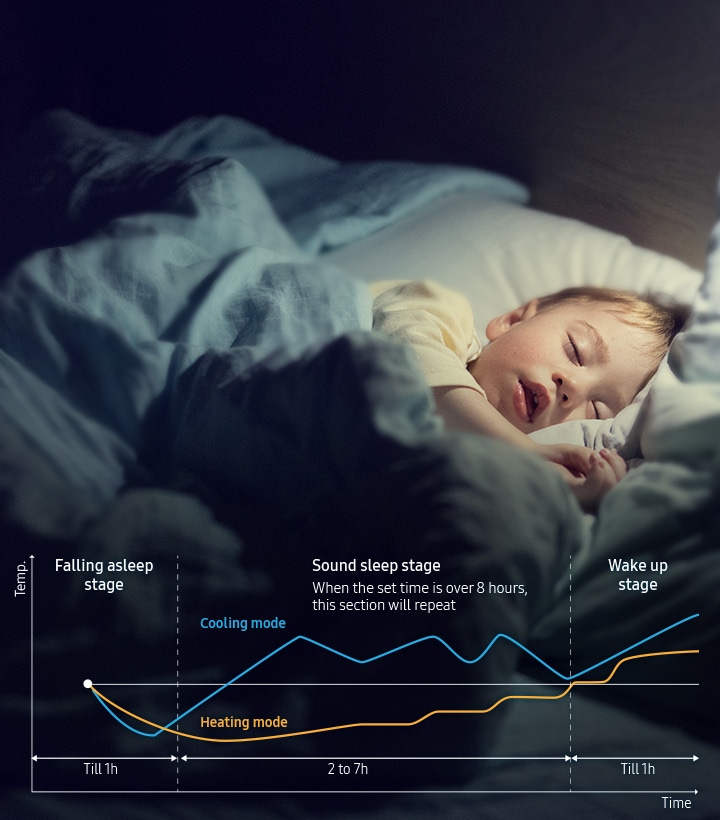

- Good SleepYes

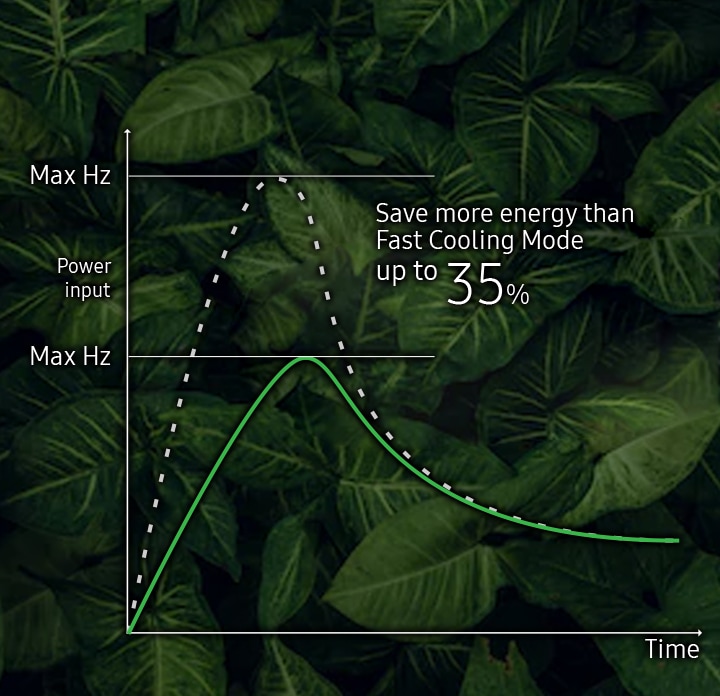

- Eco ModeYes
- DehumidificationYes
- Fan ModeYes
- QuietYes
Smart
- WiFi EmbeddedYes
App Connectivity

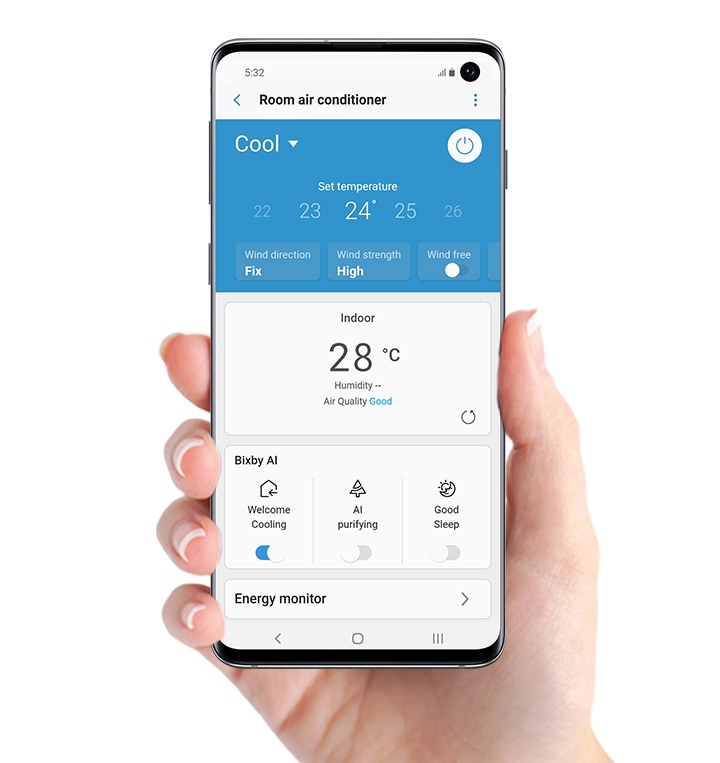

- SmartThings App SupportYes
